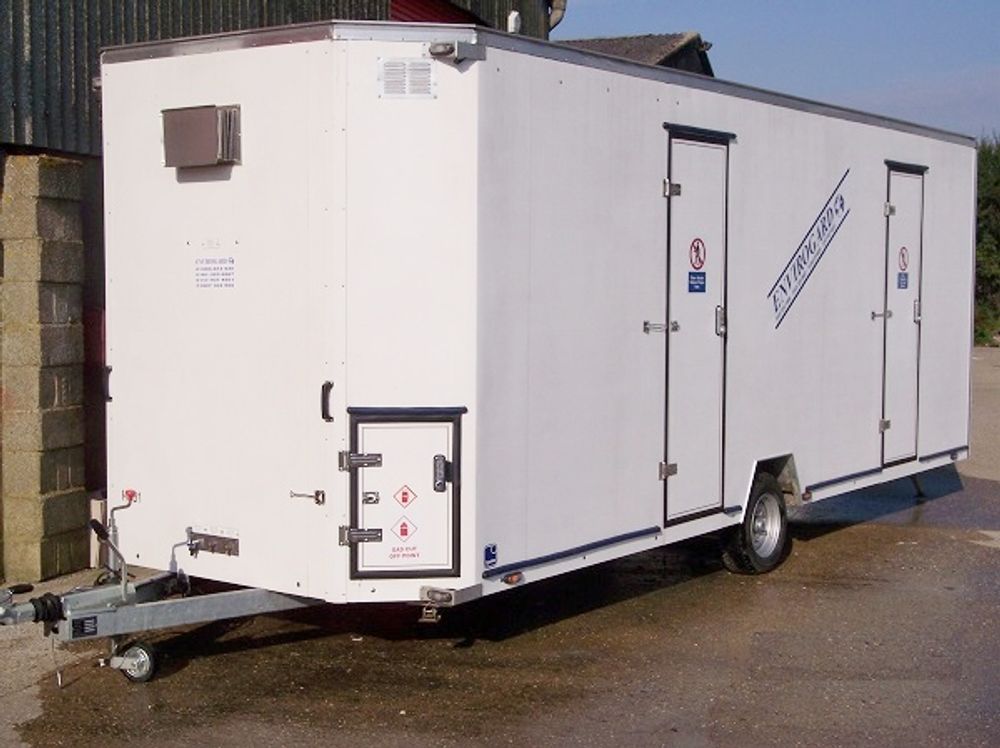

Extra head height, and a thoughful layout have maximized the available usable space. At the same time trailer weight has been kept within 1900kgs (1500kgs for the Maxi Quad XL version), so they can be towed by many light commercial vans.

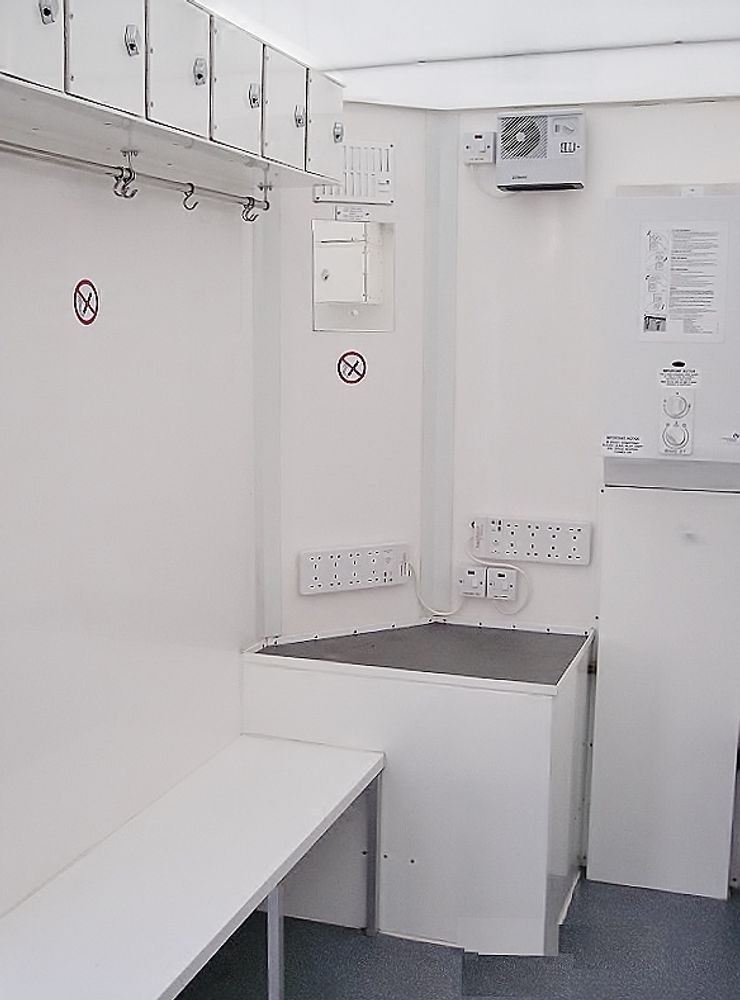

Lockers for personal belongings are provided at high level, with rails for hanging clothing below.  Power points are available for charging respirator battery packs.

Thermostatic fan heaters maintain a comfortable temperature, while hot water for the showers is provided by a room-sealed balanced-flue LPG water heater; LPG is supplied from cylinders in an external locker.

Electrical power connection is through a 16 amp 240v chassis inlet plug - we supply the matching trailing socket with the trailer. The requirement of the water heater is a clean supply of pressure between 1 bar and 6 bar; this can normally be achieved from a 15mm dia. hose connected to a mains tap.

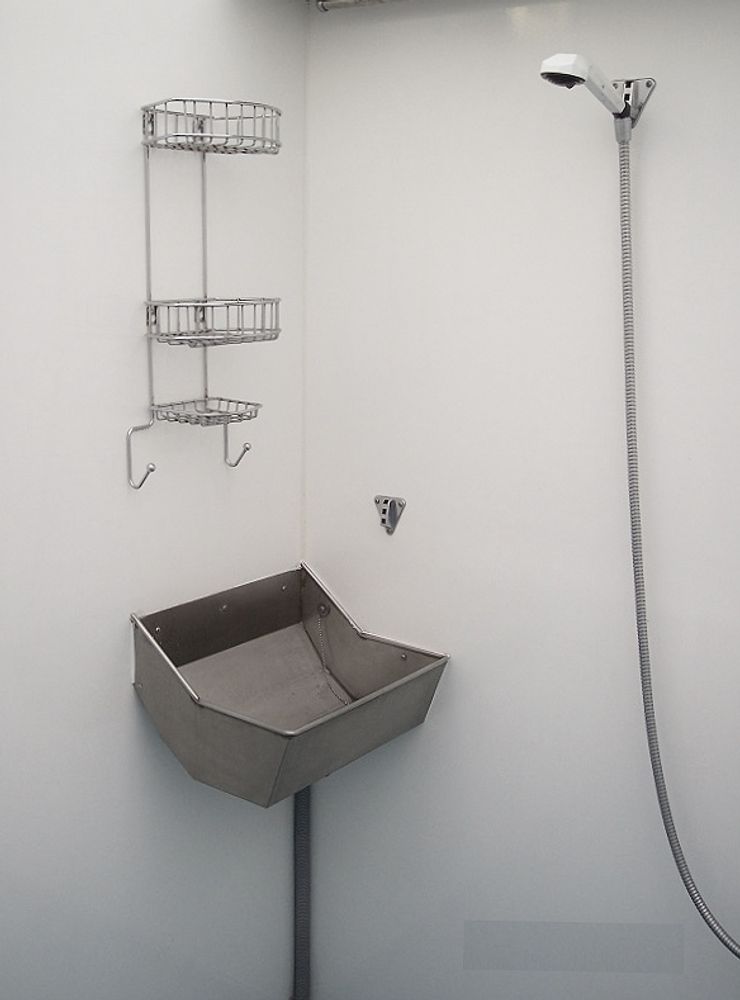

The shower area has 4 shower points, each one receiving thermostatically regulated warm water. Stainless steel sinks provided are large enough to allow for full forearm cleansing / cleaning of RPE/PPE as required.

High level shelving allows towels etc. to be kept away from overspray until required, and the rails under allow clothing, respirators, battery packs etc. to be hung out of harms way while showering off.

These large units are for up to 16 people.
