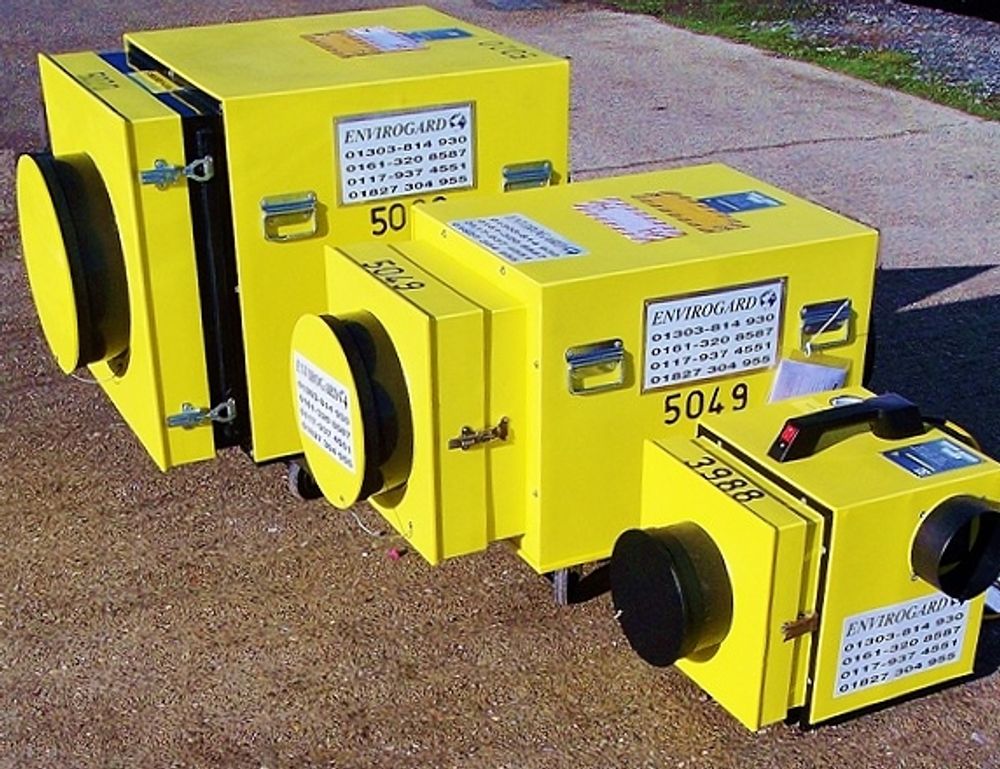

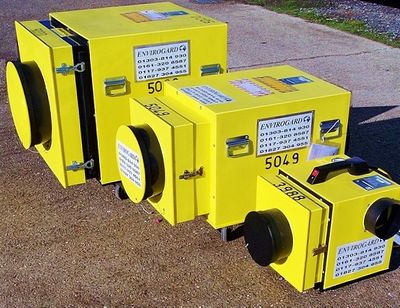

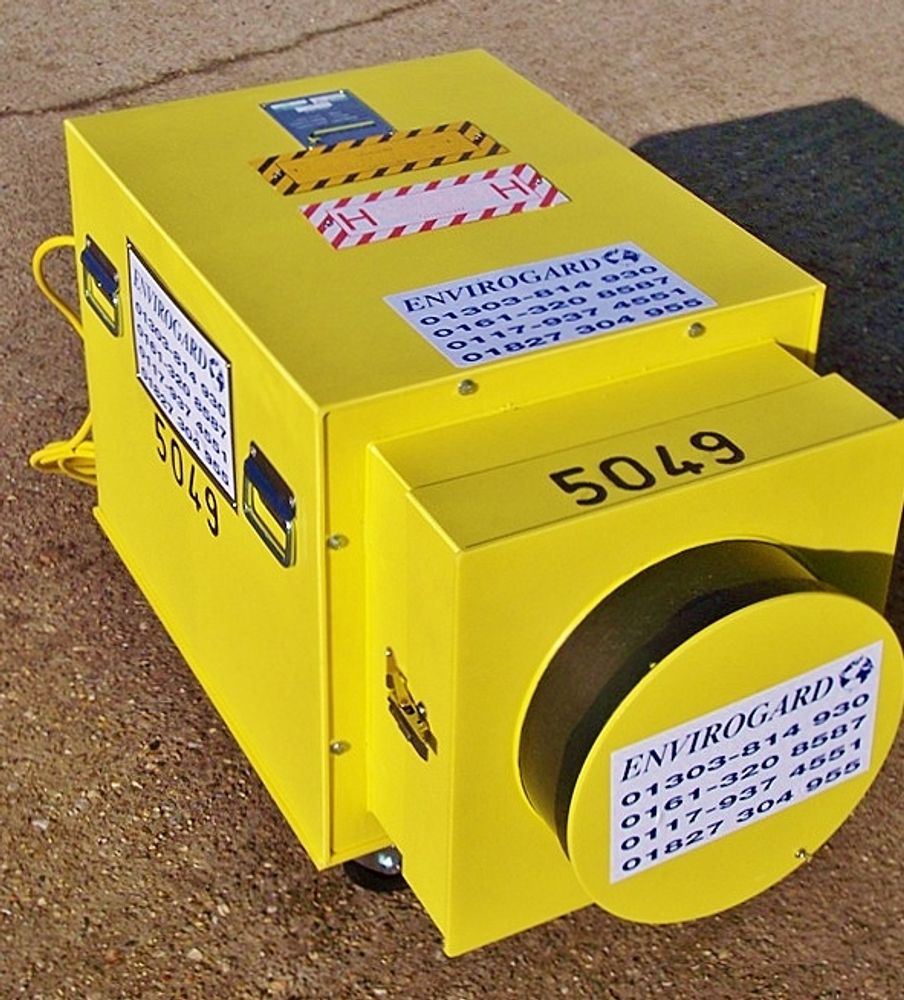

The DFU 2300 is a compact, medium size dust-filtration unit; mounted on castors it can easily be manoeuvred, and carry handles allow it to be readily handled where ground conditions are too rough.

Equipped with a HEPA filter it is capable of moving up to 2300m3/hr (1350 CFM) of air, filtering out airborne particulate matter as small as 0.3 micron with capture efficiencies up to 99.995%.

Although this is a higher air movement capacity than its sibling (E-VAC 1800) the E-VAC 2300 is an overall smaller and lighter machine; this is achieved through use of a single, high-speed, centrifugal fan.

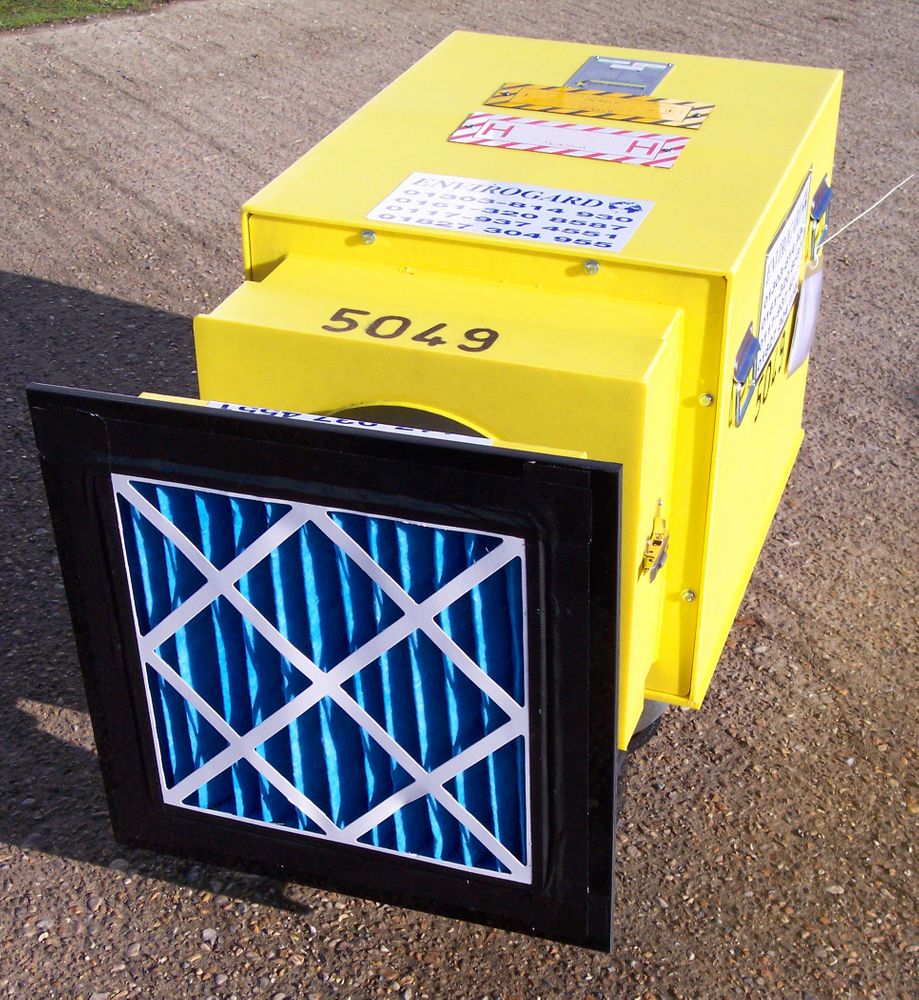

The machine is equipped for 3 -stage filtration as standard, and for applications involving high dust-loading it can be supplied with a larger pre-filter housing (shown in adjacent images) incorporating multi-pocket bag filters.

This machine is particularly well suited for use on construction sites, factories, and in warehouse environments.

Whichever application it is used for the air passes through a HEPA filter and the machines in this range are regularly tested to ensure they remove 99.995% of particles as small as 0.3 microns (to put that in perspective that's a particle approx 1/3000th the size of a pin head).

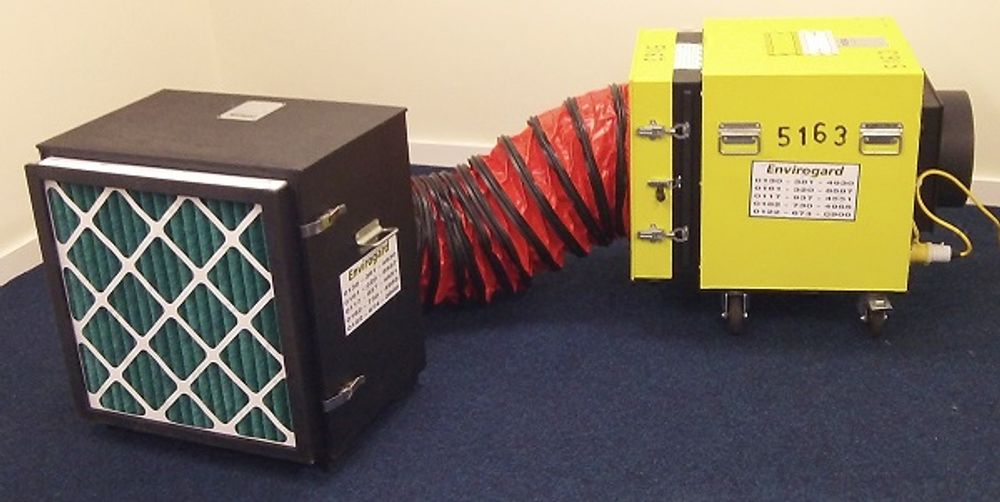

This range of machines can also be used with their roving hood to provide spot extraction, or ducting can be connected to the discharge side of the unit where the requirement is to ventilate filtered air to a confined space.

As with all our equipment this machine is "roll-up, plug-in, switch-on" - simple to operate on a 110v power supply. Use is easily scaled up or down by selecting more (or fewer) units of the same model, or by choosing higher or lower capacity units from this range.
